What benefits does the Aqua-Shield PRO™'s IPX5 enclosure provide your customers? First, the aluminum fin construction provides additional corrosion resistance and helps dissipate heat which promotes cooler running motors. Second, this product line of motors is designed and tested and is protected against low pressure water jets hitting the motor from any direction. This motor prevents the intrusion of moisture from getting inside the motor near the electrical components and this helps reduce winding failures even in the most extreme environments. If your customers have pumps and motors operating in wet, humid environments, the AQUA-SHIELD PRO® pump motor is what you need.

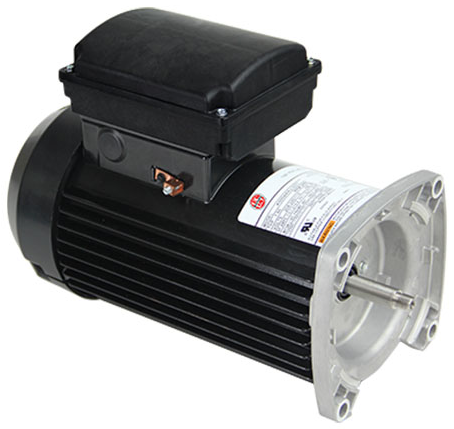

Nidec Motor Corp Aqua Shield Pro TEFC Square Flange Pool & Spa Motor | Premium High Efficiency | 2.25 THP 115/208-230 V 48 Frame | TEQ225
- Shaft threads – (square flange) 1/2-20 UNC-2A or (C-flange) 7/16-20 UNF-2A
- 50°C ambient
- 1081 design
- Continuous duty
- Class B insulated
- Totally enclosed, fan cooled, IPX5 enclosure
- 300 series stainless steel shaft
- Thermally protected
- 5.5" diameter frame
- Triple bearing protection
