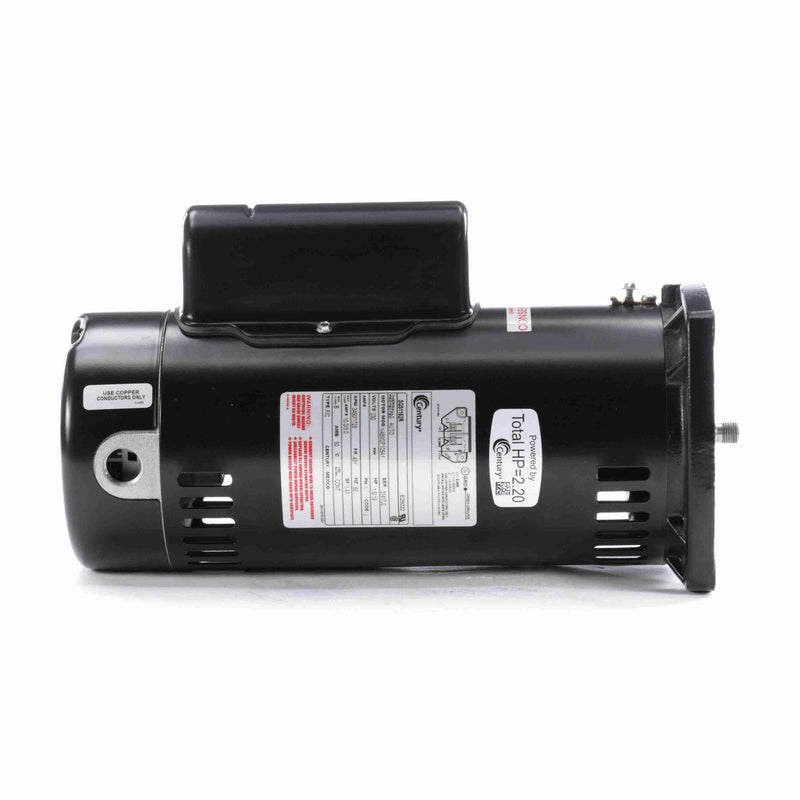

Century(R) SQS1152R Square Flange 2-Speed Full-Rated Two-Compartment Pool Pump Motor; 1.5/0.19 HP, 3450/1725 RPM, 230 V, 48Y, Threaded Shaft
- Two Speed
- All Copper Windings
- Energy Efficient
- 50°C Ambient
- Capacitor Start Low Speed
- PSC High Speed
- Open Dripproof
- Meets California Energy Commission Appliance Regulations 2008
- UL 1081 Design
- 303 Stainless Steel Shaft
| Ambient Temperature | 50 deg C |
| Application | Many Sta-Rite®, Red Jacket, and Sears Jet and Pool Pumps |
| Bearing Type | Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| Enclosure Design | Open Dripproof |
| Finish Color | Satin Black |
| Flange Type | Square |
| Frame | 48Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 10.0/3.0 A |
| HP | 1.5/0.19 |
| Insulation Class | B |
| Item | Two-Compartment Pool Pump Motor |
| Motor Design | Capacitor Start on Low Speed, PSC on High Speed |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speed | 2-Speed |
| Overall Length | 13.67 Inch |
| Phase | 1-Phase |
| RPM | 3450/1725 |
| Service Factor | 1.47 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E46412), CSA Certified (LR43341), Meets California Energy Commission Appliance Regulations 2008 |
| Sub Brand | Century® |
| Thrust Horsepower | 2.21 |
| Type | Full-Rated, F/C |
| Voltage Rating | 230 V |
