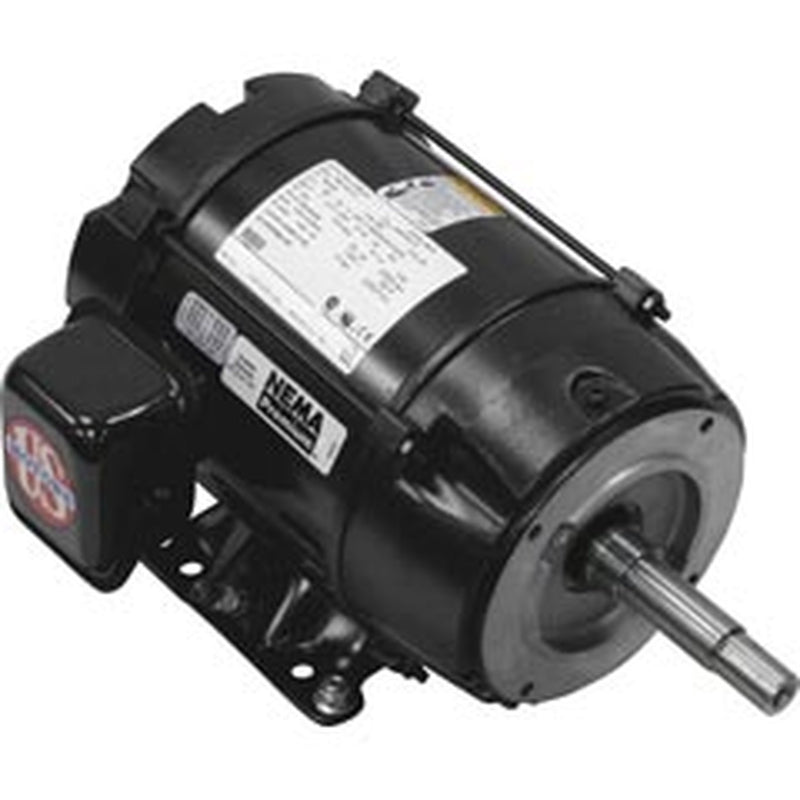

Nidec EEQ500 EQ Series DM4 Close Coupled Pump Full Rated Pool & Spa Motor; Open Dripproof, 184JMZ, 1-Speed, 5 HP, 230 V, 20 A, Black
- Special JMZ Mounting
- Permanently Lubricated Ball Bearings
- Black Paint
- Stainless Steel Ground Lug
- Premium Efficient, Full Service Factor
| Ambient Temperature | 40 deg C |
| Bearing Type | Permanently Lubricated Ball |
| Brand | U.S. Motors |
| Duty Cycle | Continuous |
| Enclosure Design | Open Dripproof |
| Finish Color | Black |
| Frame | 184JMZ |
| Frequency Rating | 60 Hz |
| Full Load Amps | 20 A |
| HP Rating | 5 |
| Insulation Class | F |
| Item | Pool & Spa Motor |
| Length Less Shaft | 15.38 Inch |
| Mounting Position | F1 Assembly |
| Mounting Type | Rigid Base |
| Nominal Efficiency | 88 % |
| Number of Speed | 1 |
| Overall Length | 19.63 Inch |
| Phase | 1 |
| RPM | 3600 |
| Series | Pentair EQ Series |
| Service Factor | 1.15 |
| Shaft Diameter | 1 Inch |
| Shaft Height | 4.5 Inch |
| Shaft Length | 4.250 Inch |
| Shaft Material | 303 Stainless Steel |
| Type | DM4, Close Coupled Pump, Full Rated |
| Voltage Rating | 230 V |
