Jandy Pro Series Standard Enclosure Power Center - 6613

Ahorrar 35%

Your inquiry was submitted successfully. You can expect to hear from us shortly. To expedite the quoting process plesae create an account.

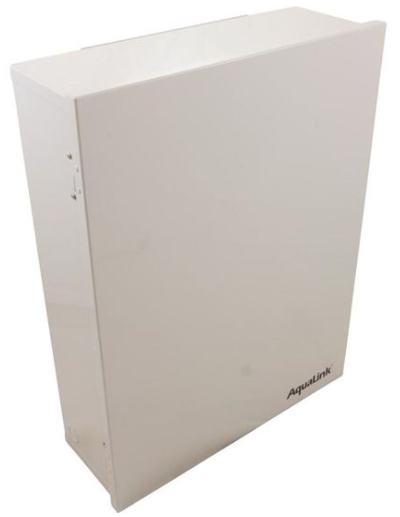

Jandy® Pro Series 6613 Standard Enclosure Power Center
  • Works with all AquaLink RS and AquaLink PDA control models
  • Optional surge protection
  • Powder-coated, galvanized steel construction
  • Simple, top-down installation, 3 HP Relays
  • For systems requiring more than eight relays, add up to three auxiliary power centers within 500 feet of the primary power center
  • An additional 4 Inch added to the low voltage raceway
  • 120/24 VAC Transformer (supply input)
  • Compact design saves space and allows for easy installment
  • Multiple knockouts for 1/2 Inch to 1-1/2 Inch conduit
  • Add special relay for 2-speed pump control
BrandZodiac
CircuitsUp to 8
ConstructionSteel
Dimensions14 Inch Width x 14 Inch Height x 4 Inch Depth
Finish ColorPowder-Coated, Galvanized
For Use WithAquaLink RS and PDA control systems
Includes4 - 3HP Relays
ItemStandard Enclosure Power Center
Standards ApprovalsUL Listed, CE Certified, ETL Listed
Sub BrandJandy® Pro Series
