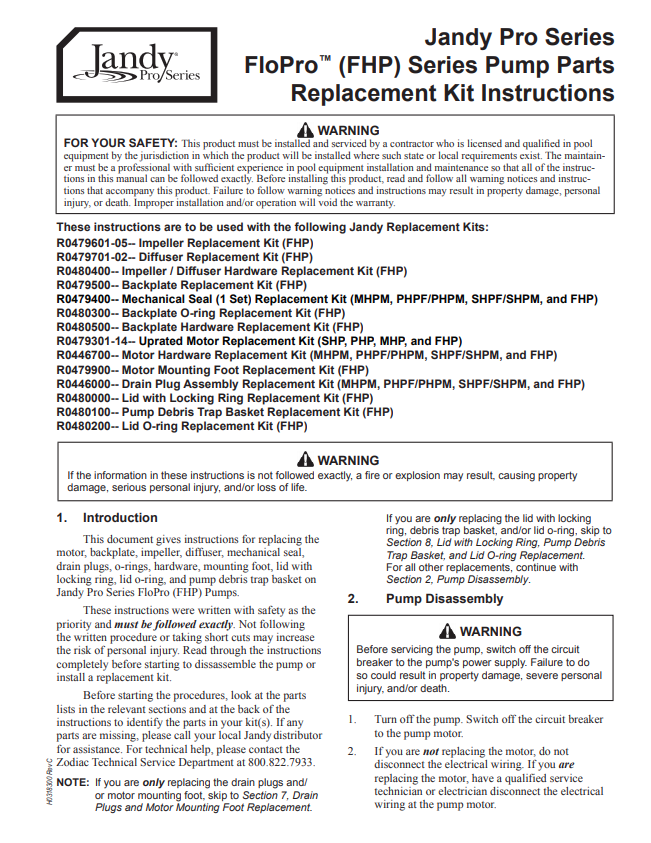

Jandy Pro Series FloPro™ (FHP) Series Pump Parts Replacement Kit Instructions

These instructions are to be used with the following Jandy Replacement Kits:

R0479601-05-- Impeller Replacement Kit (FHP)

R0479701-02-- Diffuser Replacement Kit (FHP)

R0480400-- Impeller / Diffuser Hardware Replacement Kit (FHP)

R0479500-- Backplate Replacement Kit (FHP) R0479400-- Mechanical Seal (1 Set) Replacement Kit (MHPM, PHPF/PHPM, SHPF/SHPM, and FHP)

R0480300-- Backplate O-ring Replacement Kit (FHP)

R0480500-- Backplate Hardware Replacement Kit (FHP)

R0479301-14-- Uprated Motor Replacement Kit (SHP, PHP, MHP, and FHP)

R0446700-- Motor Hardware Replacement Kit (MHPM, PHPF/PHPM, SHPF/SHPM, and FHP)

R0479900-- Motor Mounting Foot Replacement Kit (FHP)

R0446000-- Drain Plug Assembly Replacement Kit (MHPM, PHPF/PHPM, SHPF/SHPM, and FHP)

R0480000-- Lid with Locking Ring Replacement Kit (FHP)

R0480100-- Pump Debris Trap Basket Replacement Kit (FHP)

R0480200-- Lid O-ring Replacement Kit (FHP
