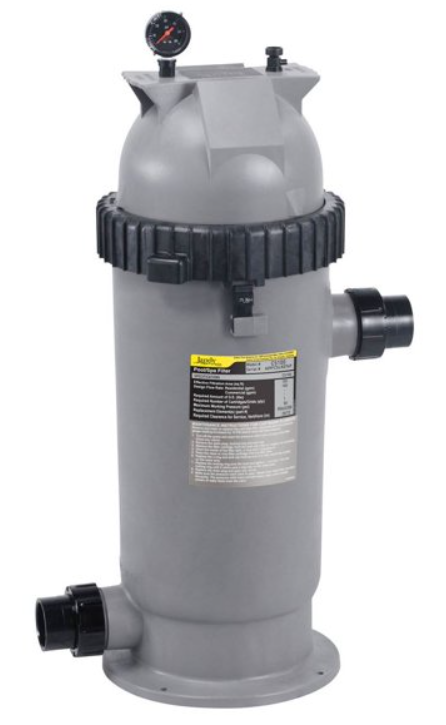

Jandy® Pro Series CS Series CS250 Single Element Small Cartridge Filter; 14-3/4 Inch Dia., 250 sq-ft, 125 gpm, 50 psi
- Designed with Zodiac's exclusive Versa Plumb® system to easily connect with other Zodiac products
- Easy-grip handles for easy lid removal
- Unique pressure gauge features clean/dirty indicator that can be customized, making it easy to assess filter Cartridge condition
- Extra-large 2 Inch drain port allows for easy cleaning of debris
- High-impact, corrosion and UV resistant, thermoplastic tank body
- Compact body designed to fit in small areas without difficulty
- Universal unions allow the filter to easily connect to Jandy® Pro Series pumps and equipment
- Easily connects to Jandy® Pro Series pumps and equipment
| Application | For pool and spa filters |
| Brand | Zodiac |
| Cartridges Required | 1 |
| Diameter | 14-3/4 Inch |
| Distance Between Inlet and Base | 3-1/4 Inch |
| Distance Between Outlet and Base | 18-1/2 Inch |
| Eight Hour Capacity | 60000 gal |
| Filtration Area | 250 sq-ft |
| Flow Rate | 125 gpm |
| Height | 42-1/2 Inch |
| Includes | 2 Inch x 2-1/2 Inch Universal Unions |
| Item | Cartridge Filter |
| Material | Thermoplastic Tank |
| Maximum Working Pressure | 50 psi |
| Normal Start Up Pressure | 6 - 15 psi |
| Series | CS |
| Six Hour Capacity | 45000 gal |
| Sub Brand | Jandy® Pro Series |
| Type | Single Element, Small |
