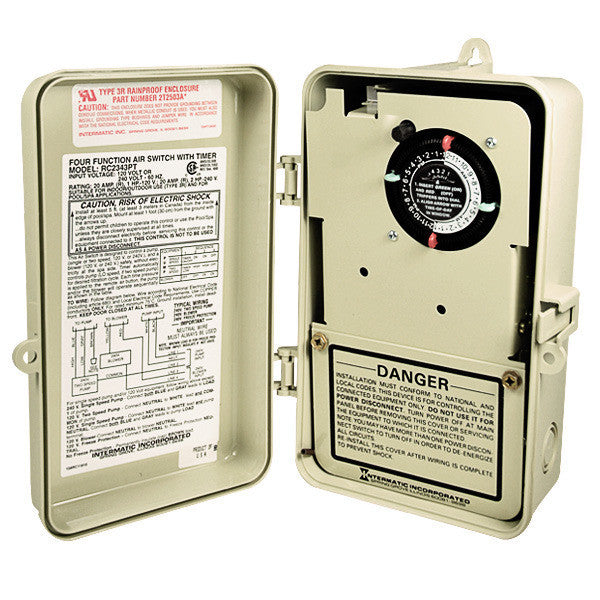

This Intermatic RC2343PT two circuit four function air switch is ideal for filter pumps, jet pumps, lights, booster bumps, blowers, and heaters and provides remote control for one, two, or three separate loads. For example, a bush button allows the user to operate a pump, a blower, and a light from up to 75 feet away. This timer has a 24 hour digital, multiple program timer that can turn a single or two-speed pump on and off several times a day.
- Remote control for one or two separate loads
- Multiple ON/OFF settings per day
- Flexible airhose enables operation up to 75 feet (not included)
- Type 3R plastic indoor/outdoor enclosure
- 2-circuit timer with sequential operations
- 4-Function Switch
- 1 year warranty
| Application | For Filter Pumps, Jet Pumps, Lights, Booster Pumps, Blowers and Heaters |
| Brand | Intermatic |
| Construction | Plastic Enclosure |
| Dimension | 9-3/8 Inch H x 5-1/2 Inch W x 3-3/4 Inch D (Enclosure) |
| Enclosure Type | NEMA 3R |
| Frequency Rating | 60 Hz |
| Item | Air Switch with Timer |
| Series | RC2000 |
| Standards Approvals | CSA Certified |
| Switch Rating | 20 A Resistive 120/240 VAC, 1 HP 120 VAC, 2 HP 240 VAC |
| Type | 4-Function |
| Voltage Rating | 120/240 VAC |
