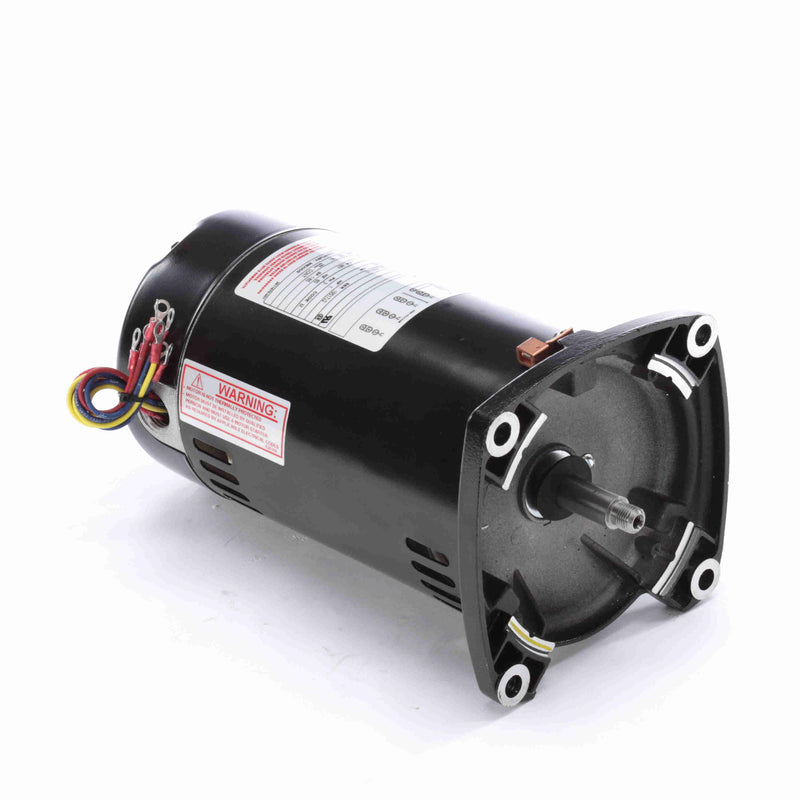

Century Square Flange 3-Phase Full-Rated Pool and Spa Pump Motor; 1 HP, 3450 RPM, 208-230/460 V, 48Y, Threaded Shaft - Q3102

Century® Q3102 Square Flange 3-Phase Full-Rated Pool and Spa Pump Motor; 1 HP, 3450 RPM, 208-230/460 V, 48Y, Threaded Shaft

• All copper windings
• 1/2-20 UNF-2A RH threaded shaft

Ambient Temperature	50 deg C
Bearing Type	Sealed Ball
Brand	Regal Beloit
Diameter	5-5/8 Inch
Duty Cycle	Continuous
Efficiency Group	Standard
Enclosure Design	Open Dripproof
Finish Color	Black Lacquer
Flange Material	Aluminum
Flange Type	Square
Frame	48Y
Frequency Rating	60 Hz
Full Load Amps	4.7/2.35 A
HP	1
Insulation Class	B
Item	Pool and Spa Pump Motor
Motor Shaft Rotation	CCWPE
Motor Thermal Protection	None
Mounting Type	C-Face
Overall Length	10.88 Inch
Phase	3-Phase
RPM	3450
Service Factor	1.65
Shaft Design	Threaded
Shaft Diameter	5/8 Inch
Shaft Length	5/8 Inch
Shaft Material	303 Stainless Steel
Standards Approvals	UL Approved, UL Recognized (E46412), CSA Certified (LR43341)
Sub Brand	Century®
Thrust Horsepower	1.65
Type	Full-Rated, P
Voltage Rating	208-230/460 V
