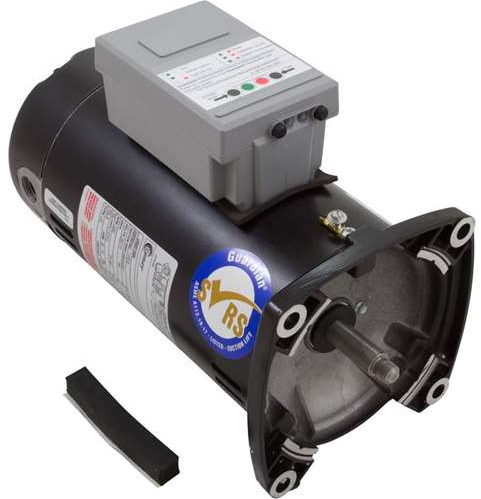

Century® Guardian® USQG1102A Square Flange Up-Rated Two-Compartment Pool Pump Motor; 1 HP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft
- Auto-reset
- Auto-calibration
- Economical
- Easy to install
- Nerve center (lighting sequence)
- Run/restart/rest/bypass mode
- Compatible with all flow rates
- Improves pool safety
- Tamper-resistant housing
| Ambient Temperature | 50° C |
| Application | Safety vacuum release systems and suction lift applications |
| Bearing Type | Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| Enclosure Design | Open Dripproof |
| Finish Color | Satin Black |
| Flange Type | Square |
| Frame | 48Y |
| Frame Material | Rolled Steel |
| Frequency Rating | 60 Hz |
| Full Load Amps | 14.8/7.4 A |
| HP | 1 |
| Insulation Class | B |
| Item | Two-Compartment Pool Pump Motor |
| Motor Design | Capacitor Start |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Overall Length | 12.13 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Series | Guardian® |
| Service Factor | 1.25 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Height | 3-1/4 Inch |
| Shaft Length | 1/2 Inch |
| Shaft Material | Stainless Steel |
| Standards Approvals | UL Approved, CSA Certified, ASME A112.19.17 SVRS |
| Sub Brand | Century® |
| Thrust Horsepower | 1.25 |
| Type | Up-Rated, UAC |
| Voltage Rating | 115/230 V |
