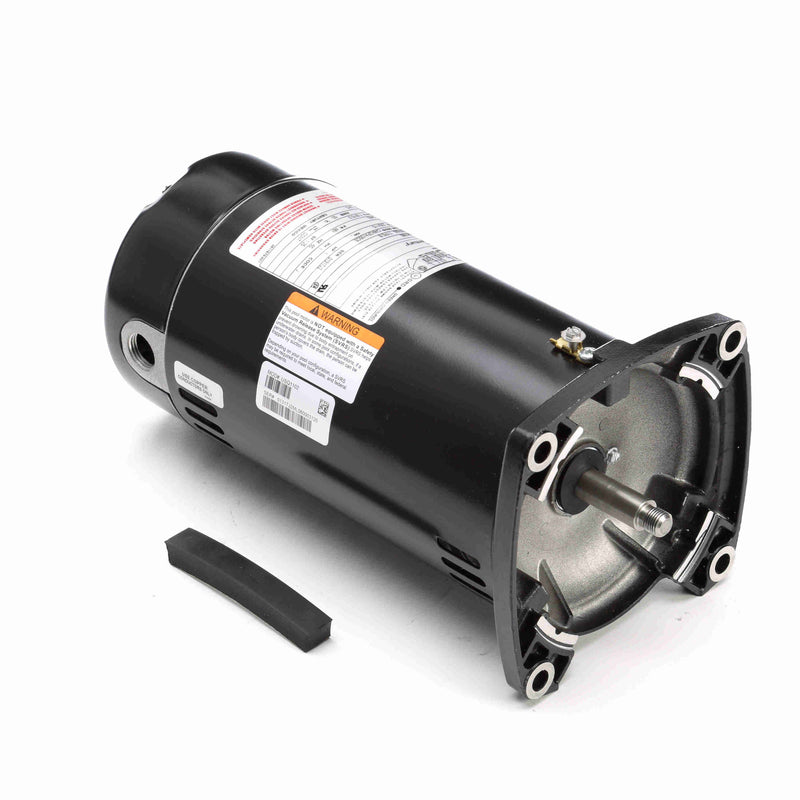

Century 1 HP Pool Pump Motor, 1 phase, 3600 RPM, 230/115 V, 48Y Frame, ODP - USQ1102
- Sealed Ball Bearings
- Capacitor Start
- Open Dripproof
- 303 Stainless Steel Shaft
- 50°C Ambient
- UL 1081 Design
| Ambient Temperature | 50 deg C |
| Application | Many Sta-Rite®, Red Jacket, Pac Fab and American Products |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Satin Black |
| Flange Type | Square |
| Frame | 48Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 15.3/7.6 A |
| HP | 1 |
| Insulation Class | B |
| Item | Two-Compartment Pool Filter Motor |
| Motor Design | Capacitor Start |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speed | 1-Speed |
| Overall Length | 12.13 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Service Factor | 1.25 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341) |
| Sub Brand | Century® |
| Thrust Horsepower | 1.25 |
| Type | Up-Rated, UAC |
| Voltage Rating | 115/230 V |
